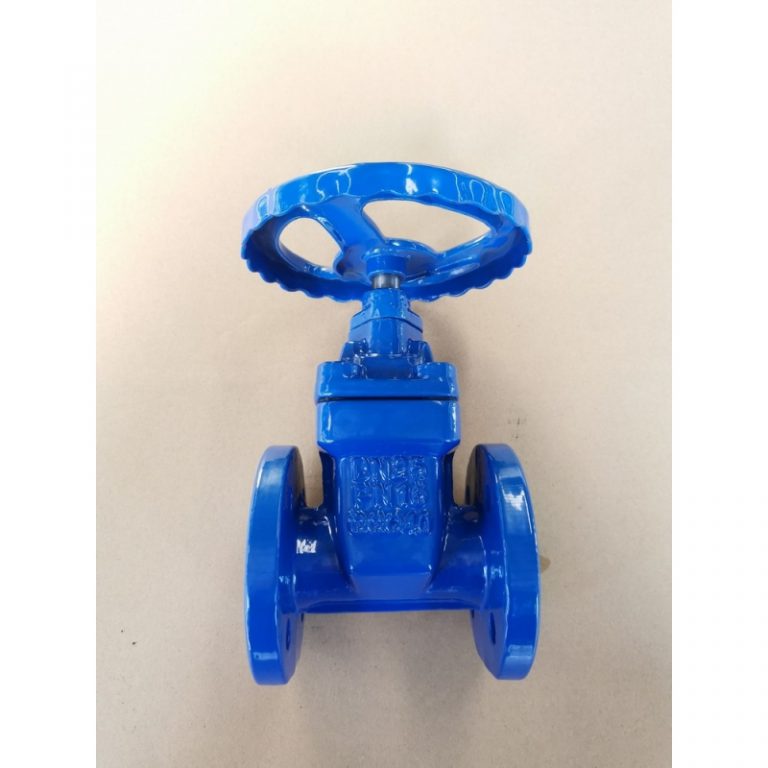

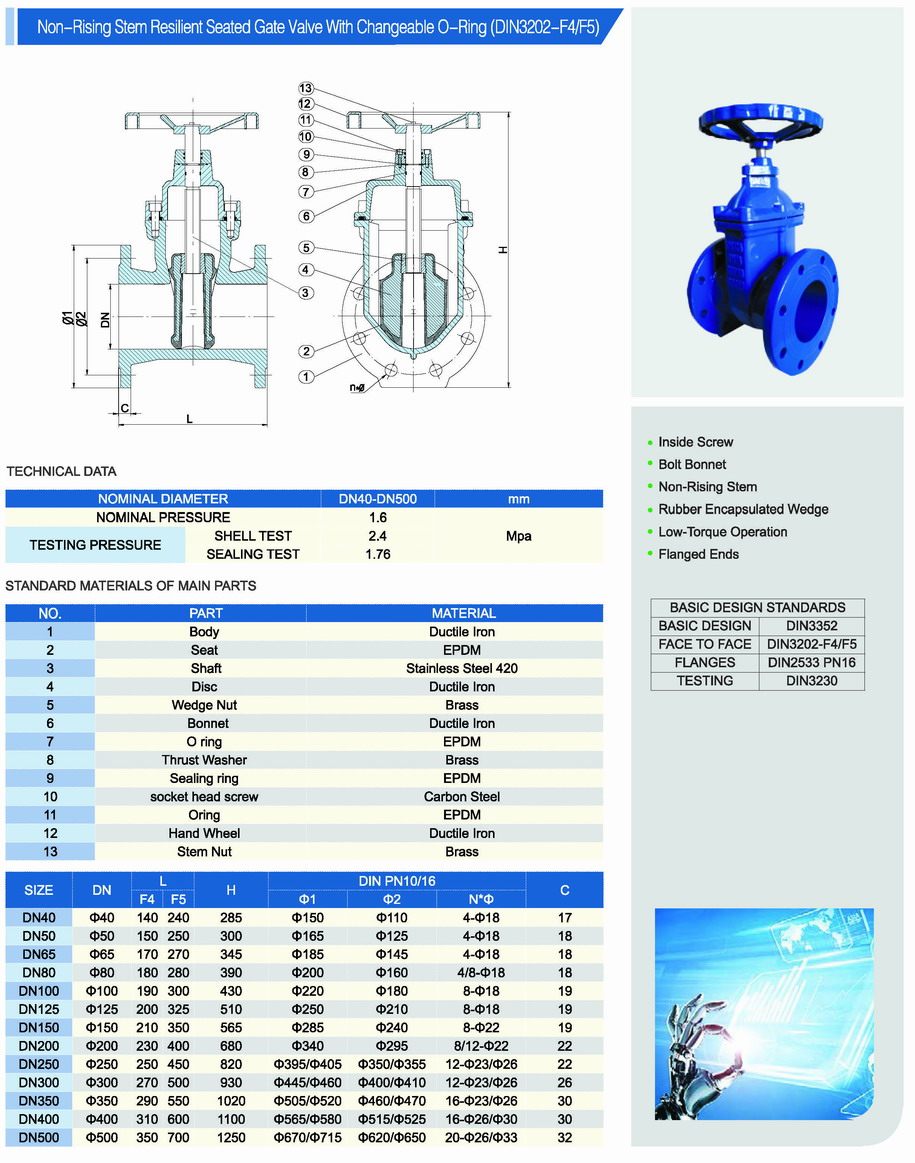

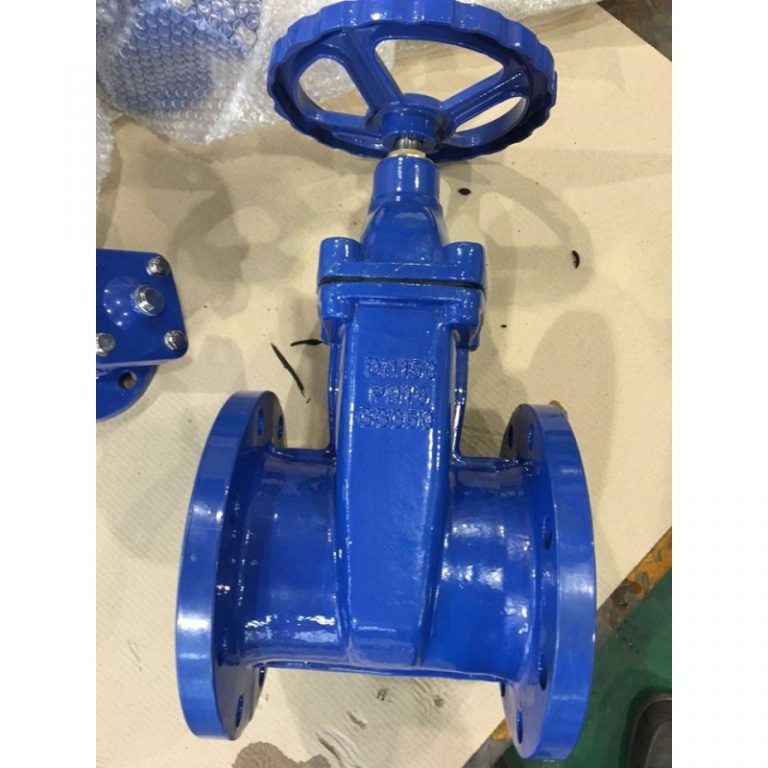

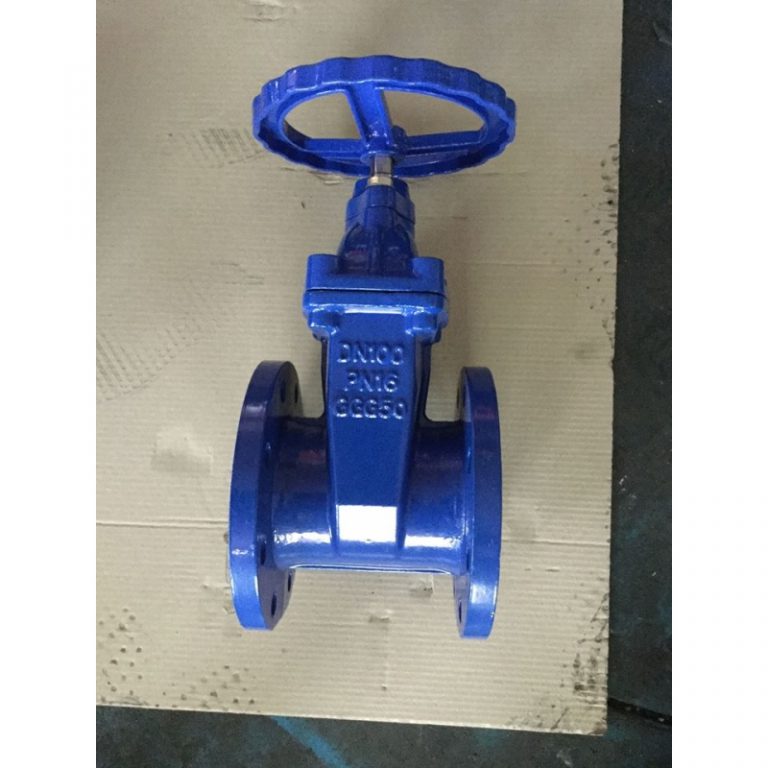

Resilient Gate Valve

GA66066

Face to Face: BS5163/DIN F4/DIN F5/ANSI B16.1/SABS 664

Rating/Drilling: PN10/PN16/10K/ANSI150/Table D/E

Body Material: Ductile iron/Stainless Steel

Seat Material: ( EPDM/NBR/Viton)

Wedge Material: Cast iron/ Ductile Iron

Stem Material: 45#/SS420/SS410/SS431/SS316/SS304

Product Details

Resilient Gate Valve

GA66066

Face to Face: BS5163/DIN F4/DIN F5/ANSI B16.1/SABS 664

Rating/Drilling: PN10/PN16/10K/ANSI150/Table D/E

Body Material: Ductile iron/Stainless Steel

Seat Material: ( EPDM/NBR/Viton)

Wedge Material: Cast iron/ Ductile Iron

Stem Material: 45#/SS420/SS410/SS431/SS316/SS304

Tell Us What You Need

Related Products

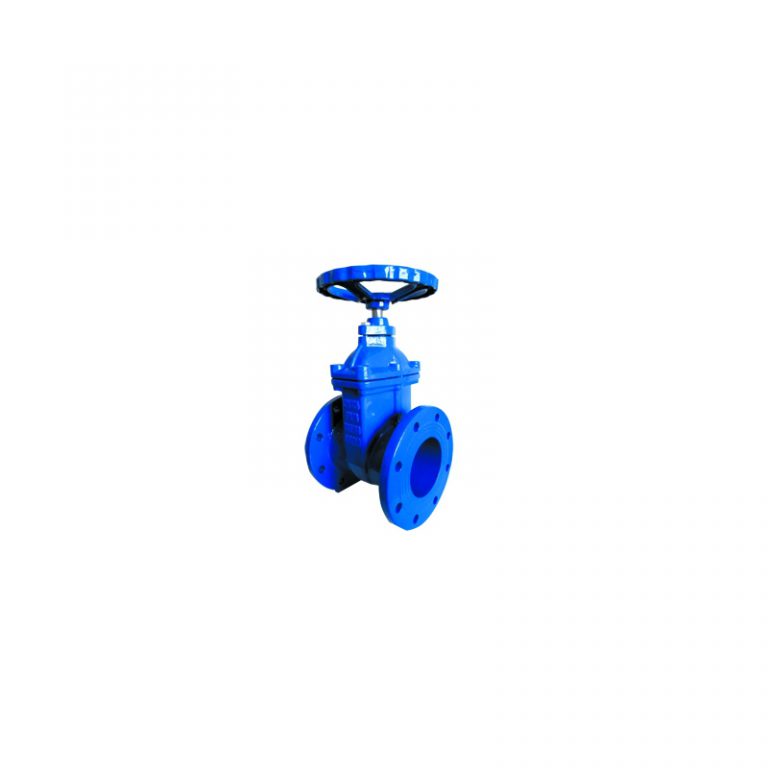

Resilient Seat Rising Stem Gate Valve (DIN F4) (1)

Resilient Seat Rising Stem Gate Valve (DIN F4)

Resilient Gate Valve Non-Rising Stem(BS5163) (2)

Resilient Gate Valve Non-Rising Stem(BS5163)

Lugged Knife Gate Valve (2)

Lugged Knife Gate Valve

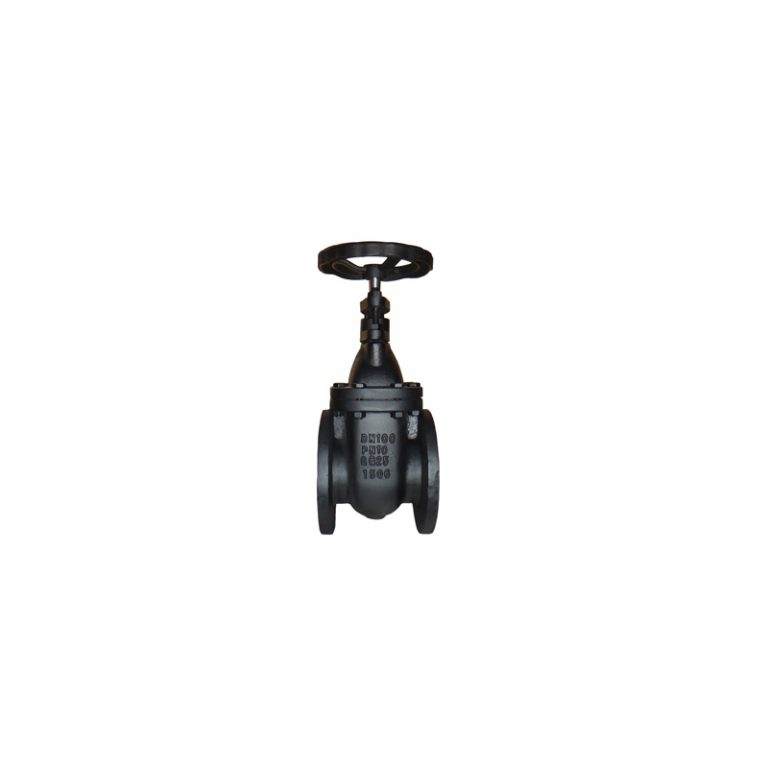

Non-Rising Stem Metal Seated Gate Valve(ANSI B16 (1)
